Global PipeLine Solutions (GPLS)

The specialist for corrosion resistant and heat resistant stainless steels, duplex, nickel alloys and titanium

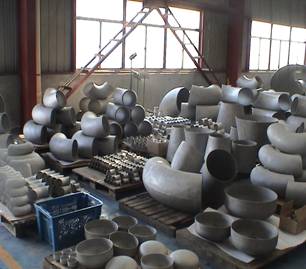

Company Delivery programme: A lot of pictures below

Elbows LR 45°, 90°, 180° or special radius

Flanges and forgings Elbows SR 45°, 90°, 180° or special radius

Special bends (special radius, cold or hot formed)

Fittings Straight tees / T-pieces

Reducing tees / Reducing T-pieces

Welded pipes and tubes Concentric reducers

Excentric reducers

Seamless pipes and tubes Caps

Stub ends

Stainless steels Collars

Crosses

Nickel alloys and titanium Special fittings

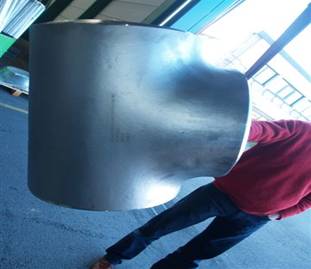

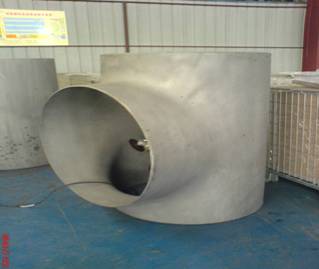

Sanitary fittings, sanitary butterfly valves and sanitary ball valves Welded WX T-piece of

Integral finned tubes 16’’ SCH120(30,96mm) in 321H

Internal polishing

Testing and quality assurance

Industries and references

Contact us

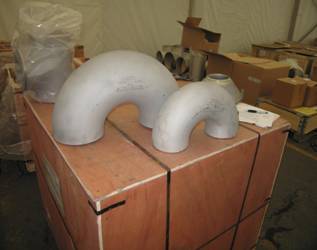

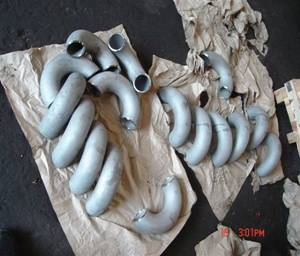

Seamless and welded WX fittings in DIN Seamless elbow 180° SR ASTM A403 ASME B16.28

in 1.4307 (304L) and 1.4404 (316L) 8'' SCH160 in superduplex S32760 with ferrite check

with EN10204/3.2 inspection 100% ultrasonic testing and 100% dye penetrant testing

and ferrite max. 3% on the weld

Seamless WP-S

Welded WP-W

Welded 100% X-Ray WP-WX

TIG, PLASMA, SMAW

DN welding fittings:

DN15 till DN2500

Thickness 1,6mm till 80mm

Radius till 3000mm

ASTM welding fittings: Sanitary butterfly valves, sanitary ball valves and unions

From 1/4'' till 98''

SCH5S, SCH10S, SCH10, SCH20, SCH30, SCH40S, SCH STD, SCH40, SCH60, SCH80S, SCH XS, SCH80,

SCH100, SCH120, SCH140, SCH160 to SCH XXS

Also client specific heavy wall

Forged fittings:

Elbows, tees, crosses, couplings, caps, unions, elbow-union, plugs, bushes, nipples, swage nipples

Branch outlet fittings / reinforced outlets / o'lets (weldolet, sockolet, threadolet, nipolet, latrolet, swage nipple,

swedge nipple, elbolet, welding boss)

Special fittings as per customer drawings

3000 lbs to 6000 lbs

SW / NPT

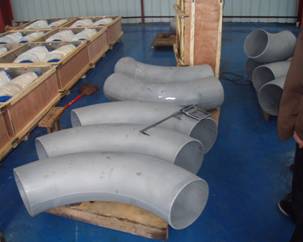

Welded WX elbow DIN2605-2 Seamless elbow ASTM A335 24'' x 50,8mm in P92 Welded WX bends 90° R=508mm

DN400 till DN1600 in 1.4307 ASTM A403 8'' SCH40S in 316L

Qualities:

ASTM / UNS: 304, 304L, 316, 316L, 321, 316Ti, 304H, 321H, 316H, 347, 347H, 317, 317L, 310(S), 309(S), 314,

316LMo, 410, 446, duplex S31803 / F51, superduplex S32750 and S32760 / F53 / F55, 904L, 6Mo / S31254 / F44

/ 254 SMO

DIN /EN: 1.4301, 1.4306, 1.4307, 1.4401, 1.4404, 1.4541, 1.4571, 1.4948, 1.4878, 1.4919, 1.4550, 1.4449, 1.4438,

1.4828, 1.4833, 1.4841, 1.4435, 1.4436, 1.4006, 1.4749, 1.4462, 1.4410, 1.4501, 1.4539, 1.4547, 1.4529

Nickel 200 (UNS N02200), monel 400 (N04400), inconel 600 (N06600), inconel 625 (N06625), incoloy 800 (N08800),

incoloy 825 (N08825), hastelloy C276, hastelloy C22, alloy 20 (N08020), alloy 28 (N08028), titanium grade 1,

titanium grade 2, titanium grade 5, curponickel and zirconium, tantalum

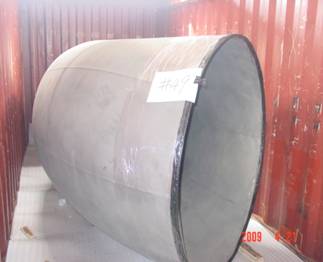

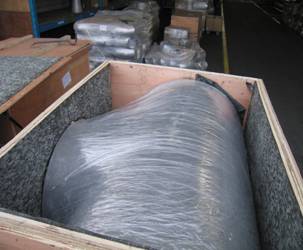

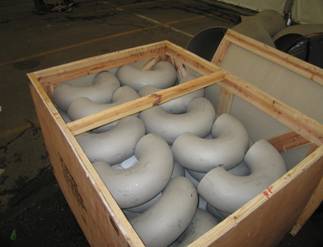

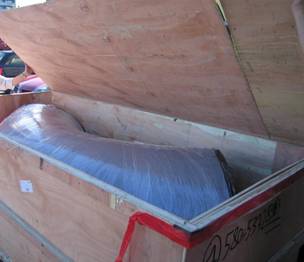

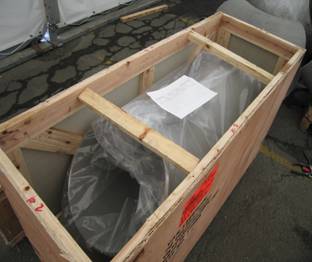

Seamless elbow 180° LR ASTM A403 Internally polished fittings till 32'' with internal Welded WX T-piece of 36'' SCH STD in 304/304L

8'' and 5'' SCH XS in 317L rugosity of max. 0,3mµ packed for shipment with special WPS/PQR and impact test at -196°C

Norms:

DIN 2609 : Butt welding fittings; technical delivery conditions

Fromstücke zum Einschweißen; Technische Lieferbedingungen

DIN 2605 Part 1: Butt welding fittings; elbows; reduced correlation of utilization (DIN2605-1)

DIN 2605 Teil 1: Formstücke zum Einschweißen; Rohrbogen, Verminderter Ausnutzungsgrad

(DIN2605-1)

DIN 2605 Part 2: Butt welding fittings; elbows; full correlation of utilization (DIN2605-2)

DIN 2605 Teil 2: Formstücke zum Einschweißen; Rohrbogen, Voller Ausnutzungsgrad (DIN2605-2)

DIN 2615 Part 1: Butt welding fittings; tees; reduced correlation of utilization (DIN2615-1)

DIN 2615 Teil 1: Formstücke zum Einschweißen; T-Stücke, Verminderter Ausnutzungsgrad (DIN2615-1)

DIN 2615 Part 2: Butt welding fittings; tees; full correlation of utilization (DIN2615-2)

DIN 2615 Teil 2: Formstücke zum Einschweißen; T-Stücke, Voller Ausnutzungsgrad (DIN2615-2)

DIN 2616 Part 1: Butt welding fittings; reducers; reduced correlation of utilization (DIN2616-1)

DIN 2616 Teil 1: Formstücke zum Reduzierstücke; T-Stücke, Verminderter Ausnutzungsgrad

(DIN2616-1)

DIN 2616 Part 2: Butt welding fittings; reducers; full correlation of utilization (DIN2616-2)

DIN 2616 Teil 2: Formstücke zum Reduzierstücke; T-Stücke, Voller Ausnutzungsgrad (DIN2616-2)

DIN 2617: Butt welding fittings; caps; dimensions (DIN2617)

Formstücke zum Einschweißen; Kappen, Maße (DIN2617)

DIN 11851: Fittings for the food, chemical and pharmaceutical industry - Stainless steel screwed pipe

connections – Design for rolling in and welding-on

Armaturen für Lebensmittel, Chemie und Pharmazie - Rohrverschraubungen aus

nichtrostendem Stahl - Ausführung zum Einwalzen und Anschweißen

Armatur, Rohrverschraubungen, Anschweißverschraubung, Einwalzverschraubung

EN10253-4: Butt-welding pipe fittings - Part 4: Wrought austenitic and austenitic-ferritic (duplex) stainless

steels with specific inspection requirements

AD-W0 (AD2000-Merkblatt W0): General principles for materials

AD-W2 (AD2000-Merkblatt W2): Austenitic and austenitic-ferritic steels

AD-W10 (AD2000-Merkblatt W10): Materials for low temperatures - Ferrous materials

AD-HP100R (AD2000-Merkblatt HP100R): Construction regulations Metal piping

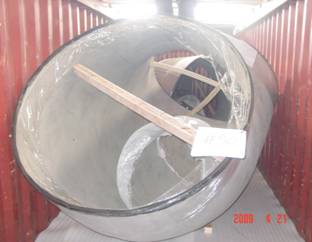

Welded WX elbow 90° LR ASTM/ASME A/SA403 Welded WX elbow 90° LR ASTM A403, ASME B16.9 Seamless elbow 90° LR ASTM/ASME A/SA403

64'' SCH XS in 304/304L 48'' SCH20 in 321/321H 20'' SCH STD in 347H

ASTM A182/A182M: Forged or Rolled Alloy and Stainless Steel Pipe Flanges, Forged Fittings, and Valves and Parts for

High-Temperature Service

ASTM A403/A403M: Wrought Austenitic Stainless Steel Piping Fittings

ASTM A815: Wrought Ferritic, Ferritic/Austenitic and Martensitic Stainless Steel Piping Fittings

ASTM B366: Standard Specification for Factory-Made Wrought Nickel and Nickel Alloy Fittings

ASTM B462: Specification for Forged or Rolled UNS N06030,N06022,N06035,N06200,N06059,N06686,

N08020,N08024,N08026,N08367,N10276,N10665, N10675,N10629, N08031,N06045,

N06025, & R20033 Alloy Pipe Flanges, Forged Fitting, &

ASME B16.5: Pipe flanges and flanged fittings

ASME B16.9: Factory-Made Wrought Buttwelding Fittings

ASME B16.11: Forged Fittings, Socket-Welding and Threaded

ASME B16.25: Buttwelding ends

ASME B16.28: Wrought Steel Buttwelding Short Radius Elbows and Returns

MSS SP 95: Swage nipples and bull plugs

MSS SP 97: Integrally reinforced forged branch outlet fittings - Socket welding, Threaded and Buttwelding

ends

NACE MR0175: Sulfide Stress Cracking Resistant Metallic Materials for Oilfield Equipment

NACE MR0103: Materials Resistant to Sulfide Stress Cracking in Corrosive Petroleum Refining Environments

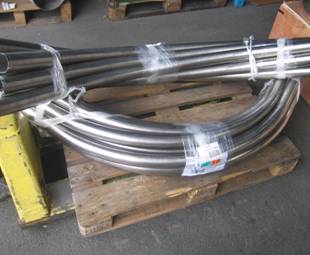

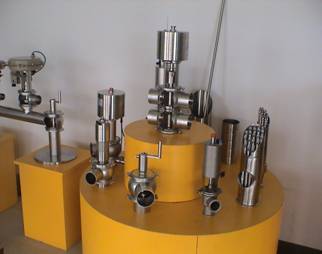

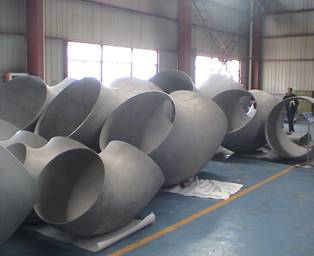

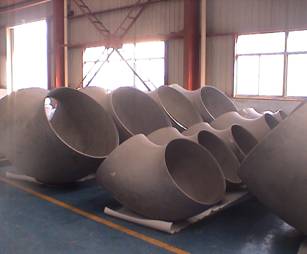

Seated valves (Sitzventile) and control valves (Regelventile) Bended elbows with large and special radius Welded WX elbow 45° and 90° LR of DN900 till DN1600

for sanitary applications as per DIN2605-1 and DIN2605-2 in 1.4307

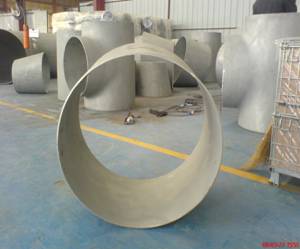

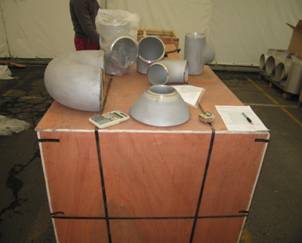

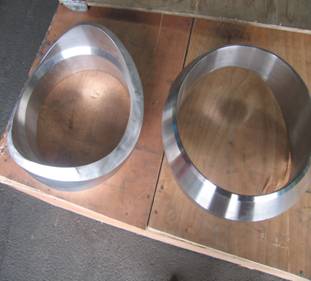

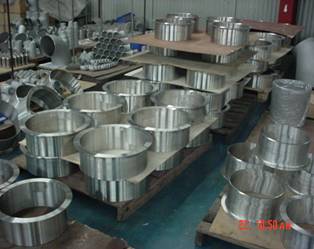

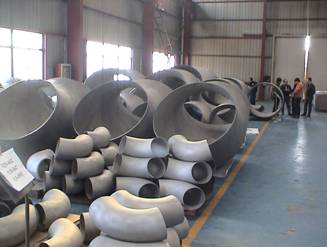

Fittings for a project ready for a client's inspection Welded WX stub ends MSS-SP43 type A (short type) Welded WX T-pieces and reducers ASTM A403

14'' and 18'' SCH10S in 316/316L 36'' SCH STD in duplex S31803

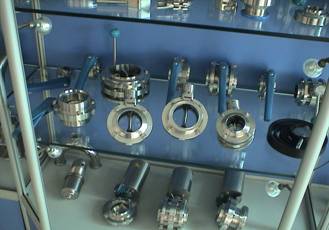

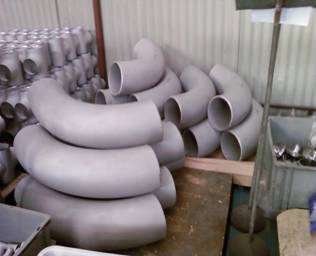

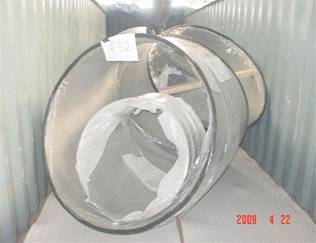

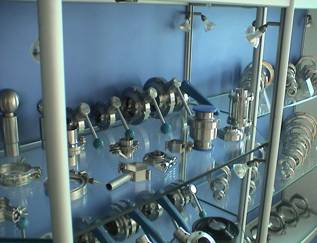

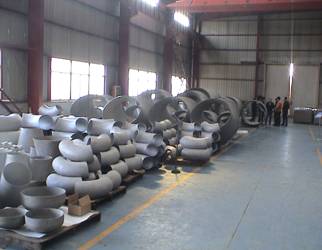

Sanitary butterfly valves, sanitary ball valves unions Welded WX elbows ASTM A403 60'' SCH STD in 316L Seamless fittings ASTM B366 of 4'' till 8''

in incoloy 825(UNS N08825)

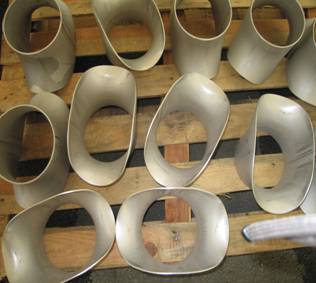

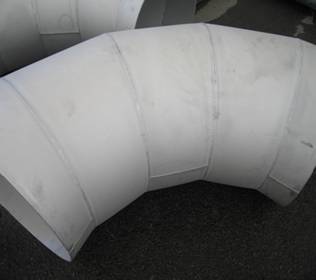

Saddelstutzen DIN2618 DN250/273,0 x 3 in 1.4571 Mitered bend (Segmentbogen) DIN2605-1 Weldolets ASTM A182 24'' x 12'' in 321

DN600/609,6 x 5,0mm in 1.4541 with 100% dye penetrant investigation
